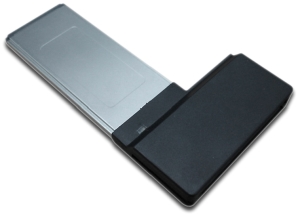

CBECA-C02 (ExpressCard/34 to CardBus/PCMCIA PC Card Adapter)

Introduction:
proudly presents you a perfect solution for converting the 16-bit/32-bit PC Card to standard ExpressCard/34.
CBECA-C02 accepts CardBus/PCMCIA PC Card and supports PCI-E interface.
CBECA-C02 supports any kinds of PCMCIA and CardBus PC Card applications, such as 16-bit memory card adapter, ATA card, 32-bit 3G/3.5G I/O card, wireless I/O card, etc.  It is a very convenient device for any Notebook or PC equipped with ExpressCard socket to use PC Card.

Features

• PCI-E Interface Card Adapter.
• CardBus/PCMCIA compliant.
• Any CardBus/PCMCIA PC Cards can be accessible.
• Supports Windows Vista.
• Hot swap support - cards can be plugged and unplugged without system power-off or reboot.

Specifications

• Input Socket          32-bit CardBus/16-bit PCMCIA PC Card
• Output Interface   ExpressCard/34
• Power Output       3.3V / 5V
• Supporting OS     Windows VISTA
• Safety Approval   CE / FCC / RoHs
• Dimensions          110.0 mm(L)* 64.0 mm(W)* 9.0 mm(H)
• Weight         ≒31g

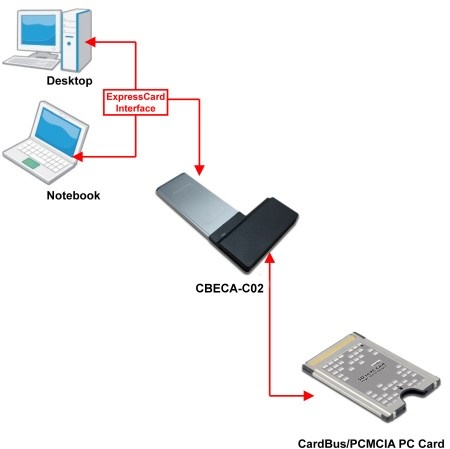

Application Diagram

CBECA-C02 Package Contents
Unit price: US$ 45
CBECA-C02 (ExpressCard/34 to CardBus/PCMCIA PC Card Adapter)

Documents Download
Brief(PDF):	Taiwan 1	Taiwan 2 Mirror	China Mirror
