Home > Product > ADP-70015 (mPCIe to PCIe Adapter with Broadcom BCM70015 Crystal HD Video Decoder Card)

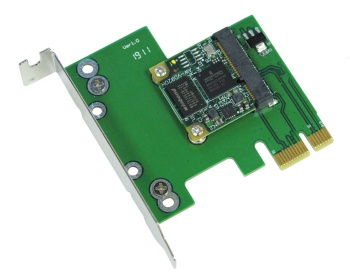

 ADP-70015

(mPCIe to PCIe Adapter with Broadcom BCM70015 Crystal HD Video Decoder Card)

Introduction:
The ADP-70015 advanced HD Video Decoder PCIe card is a low cost, low power, highly integrated solution for high definition (HD) video playback of 1080p media applications. It is targeted for PC/x86 applications such as playback of streaming video content, Blu-ray Disc™ playback, file-based content, and broadcast and other TV sources. It is optimized for use in Small Form Factor (SFF) and Desktops.

Broadcom BCM70015
(Crystal HD Video Decoder Card)


    Specification:

  • PCI Express Mini Card Electromechanical Specification Revision 1.2
  • PCI Express Card Electromechanical Specification 2.0
  • Standard Height PCI Express Add-in Card.
  • Low Profile PCI Express Add-in Card.
  • Full/ Half -Mini Card dimension.
  • Supports all of Mini-Cards such as Video Decoder Mini Card to desktop PC.
  • Provides software support for Adobe Flash Player (v10.1), Windows Media® Player (v12), as well as support for other third-party media players including both commercial and open-source
  • Supports standard definition (SD) and HD multi-format video decode of industry standard codecs (H.264/AVC, MPEG-2, VC-1, WMV9, MPEG-4, DivX®, Xvid and AVS), enabling users to enjoy a mobile media experience with no frame drops or jitter, even under a heavy CPU load.
  • Is optimized for motherboard designs and is also available in the PCI Express® card format

    System Requirements:

  • Desktop PC with an available PCIe slot.
  • Windows XP,Vista,7 (32-/64-bit) Vista (32-/64-bit)
  • Linux 2.6.11

Broadcom BCM70015:

  Driver download


ADP-70015 Package Contents

ADP (Mini PCI-E / PCI-E adapter) x1
BCM970015 (Crystal HD Video Decoder Card) x1
JP0155 ( Standard Height PCI express bracket ) x1 Screw x2


BCM970015 Contents

BCM970015 (Crystal HD Video Decoder Card) x1

  Driver download

Screw x2


Documents Download

Brief  Taiwan  Taiwan 2  China Mirror
Dimension  Taiwan  Taiwan 2  China Mirror
Schematic  Taiwan  Taiwan 2  China Mirror
Driver download  Taiwan  Taiwan 2  China Mirror
