MP2H (Hafl Size mPCIe to PCIe Adapter)
|
Overview:
The PCI-E Mini Card passive adapter is designed for wireless application on desktop PCs that convert half-size MiniCard to USB 5pin Header or standard PCI-Express 1x slot.
You can insert your USB type minicard to this adapter then plug to USB 5pin header port through USB cable.
Or insert your PCI-E type mini-card into this adapter then insert to PCI-E 1x connector.
Also, WiFi& Bluetooth Combo card such as Intel® Centrino® Advanced-N 6235 can be used for supporting both WiFi by PCIe and Bluetooth by USB at the same time.

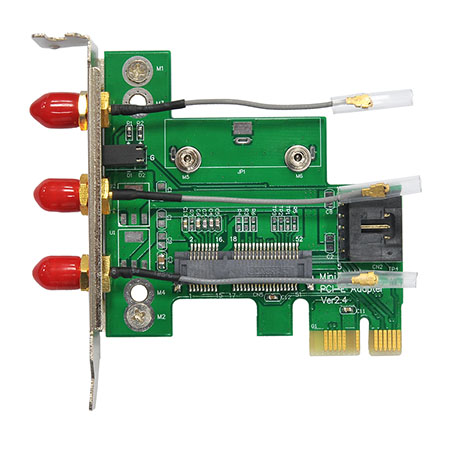

MP2H (mPCIe to PCIe adapter)
with IPX to RP-SMA cable x3
 |
IPX to RP-SMA cable
 |

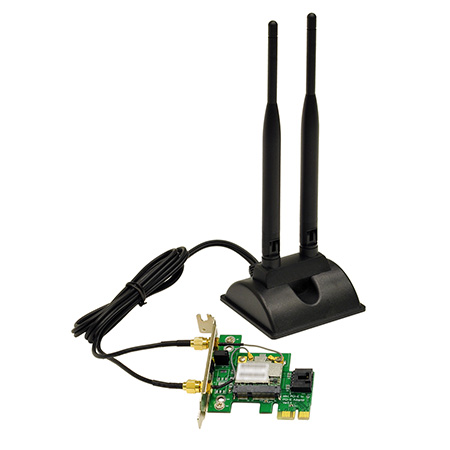

MP2H (mPCIe to PCIe adapter)
with IPX to RP-SMA cable x2 |
 |
Specification
- PCI Express Mini Card (half ) to PCI Express adapter
- Low Profile Height PCI Express1x Add-in Card– Standard Height by bundled JP0593 bracket
- Supports system bus interface: PCIe&USB2.0
- Supports USB interface of Mini-Cards such as 3G,CDMA, WWAN, HSPA, GPS, WiMAX, Bluetooth Mini Card to desktop PC. (Please use MP2H-S for SIM card slot)
- Support PCIeMiniCard :IEEE WLAN802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac
- Low Profile PCI Express Add-in Card– max 3 ANTs for Low profile, max 4 ANTs for Standard Height
- Wireless access LED, POWER LED
- U.FL/IPX to SMA / RP-SMA pigtail WiFi RF cable adapter
3G / WiMAX antenna: SMA connector , WiFi antenna : RP-SMA connector
- MP2H: Transparent to operating systems and does not require any software drivers
- Intel Centrino® Ultimate-N 6300 brief download
- Intel Centrino® Advanced-N 6200 brief download
- Intel® WiFi Link 5100 brief download
- Intel® Centrino® Wireless-N 1000 brief download
- DRIVER download (http://downloadcenter.intel.com)
Notice
- No driver CD accompanied.
- Make sure you download and install the proper driver before you install the adapter.
- MP2H
- MP2H-632450
- MP2H-6205
- MP2H-622450
- MP2H-6224P0
- MP2H-6224P3
- MP2H-5124P0
| MP2H Package Contents |
|
| Unit price: US$ 20 |
MP2H (mPCIe to PCIe adapter) x1
with IPX to RP-SMA cable x3
 |
JP0593
(Standard Height PCI express bracket) x1
 |
Y05-U2F-060
(USB dupont 5PIN to 5PIN cable) x1
 |
Screw x2
 |
Gasket x2
 |
| MP2H-632450 Package Contents |
|
| Unit price: US$ 100 |
MP2H (mPCIe to PCIe adapter) x1
with IPX to RP-SMA cable x3
|
633ANHMW (Intel® Centrino® Ultimate-N 6300) half size x1
 |
AN2450
(2.4/5.8GHz Rubber Antenna) x3
 |
JP0593
(Standard Height PCI express bracket) x1
|
Y05-U2F-060
(USB dupont 5PIN to 5PIN cable) x1 |
Screw x2
|
Gasket x2
|
| MP2H-6205 Package Contents |
|
| Unit price: US$ 51 |
MP2H (mPCIe to PCIe adapter) x1
with IPX to RP-SMA cable x2
 |
62205ANHMW
(Intel Centrino® Advanced-N 6205) half size x1
 |
AB2450
(Strong Magnet Mount for 2.4/5.0GHz Antenna) x1
 |
JP0593
(Standard Height PCI express bracket) x1
|
Y05-U2F-060
(USB dupont 5PIN to 5PIN cable) x1
|
Screw x2
|
Gasket x2
|
| MP2H-622450 Package Contents |
|
| Unit price: US$ 47 |
MP2H (mPCIe to PCIe adapter) x1
with IPX to RP-SMA cable x2
|
622ANHMW
(Intel Centrino® Advanced-N 6200) half size x1 |
AB2450
(Strong Magnet Mount for 2.4/5.0GHz Antenna) x1
|
JP0593
(Standard Height PCI express bracket) x1
|
Y05-U2F-060
(USB dupont 5PIN to 5PIN cable) x1
|
Screw x2
|
Gasket x2
|
| MP2H-6224P0 Package Contents |
MP2H (mPCIe to PCIe adapter) x1
with IPX to RP-SMA cable x2
|
622ANHMW
(Intel® Centrino® Advanced-N 6200) half size x1
|
ANT2400Q2P
(2.4GHz 2.15dBi Rubber duck antenna) x2
 |
JP0593
(Standard Height PCI express bracket) x1
|
Y05-U2F-060
(USB dupont 5PIN to 5PIN cable) x1
|
Screw x2
|
Gasket x2
|
| MP2H-6224P3 Package Contents |
|
| Unit price: US$ 41 |
MP2H (mPCIe to PCIe adapter) x1
with IPX to RP-SMA cable x2
|
622ANHMW
(Intel® Centrino® Advanced-N 6200) half size x1
|
ANT2400Q2P3
(2.4GHz 2.15dBi Rubber duck antenna) x2
 |
JP0593
(Standard Height PCI express bracket) x1
|
Y05-U2F-060
(USB dupont 5PIN to 5PIN cable) x1
|
Screw x2
|
Gasket x2
|
| MP2H-5124P0 Package Contents |
|
| Unit price: US$ 32 |
MP2H (mPCIe to PCIe adapter) x1
with IPX to RP-SMA cable x2
|
512AN_HMW
(Intel® WiFi Link 5100) Half Size x1
 |
ANT2400Q2P
(2.4GHz 2.15dBi Rubber duck antenna) x2
|
JP0593
(Standard Height PCI express bracket) x1
|
Y05-U2F-060
(USB dupont 5PIN to 5PIN cable) x1
|
Screw x2
|
Gasket x2
|
