   M2MP3-A
M.2 (NGFF) to mini PCI-E アダプタ
(Second PCIe Lane Socket 1 , Key A, 最大寸法タイプ 3042)

   M2MP3-E
M.2 (NGFF) to mini PCI-E アダプタ
(Second PCIe Lane Socket 1 , Key E, 最大寸法タイプ 3042)







Brief Taiwan 1 Taiwan 2 China
Compatibility List Taiwan 1 Taiwan 2 China
Web-shop


First Impression


名稱 (Name) : M2MP3-A
簡介 (Summary) : M.2 (NGFF) to mPCIe (PCIe+USB) adapter
界面 (Interface):  mPCIe side: PCIe + USB
M.2 (NGFF) side :Second PCIe Lane Socket 1 , Key A
應用 (Application) :  Intel® 17265 , 18260 , Atheros® W0096

名稱 (Name) : M2MP3-E
簡介 (Summary) : M.2 (NGFF) to mPCIe (PCIe+USB) adapter
界面 (Interface):  mPCIe side: PCIe + USB
M.2 (NGFF) side :Second PCIe Lane Socket 1 , Key E
應用 (Application) :  Atheros® W0096

        Function


  • Allows user to use Second PCIe lane of M.2 Socket 1 Module to mPCIe Slot in the Desktop or Laptop.
  • Supports system bus interface: PCIe&USB2.0.
  • Supports USB interface of M.2 Card such as Bluetooth, 4G, LTE, 3G,CDMA, WWAN, HSPA, GPS, WiMAX.

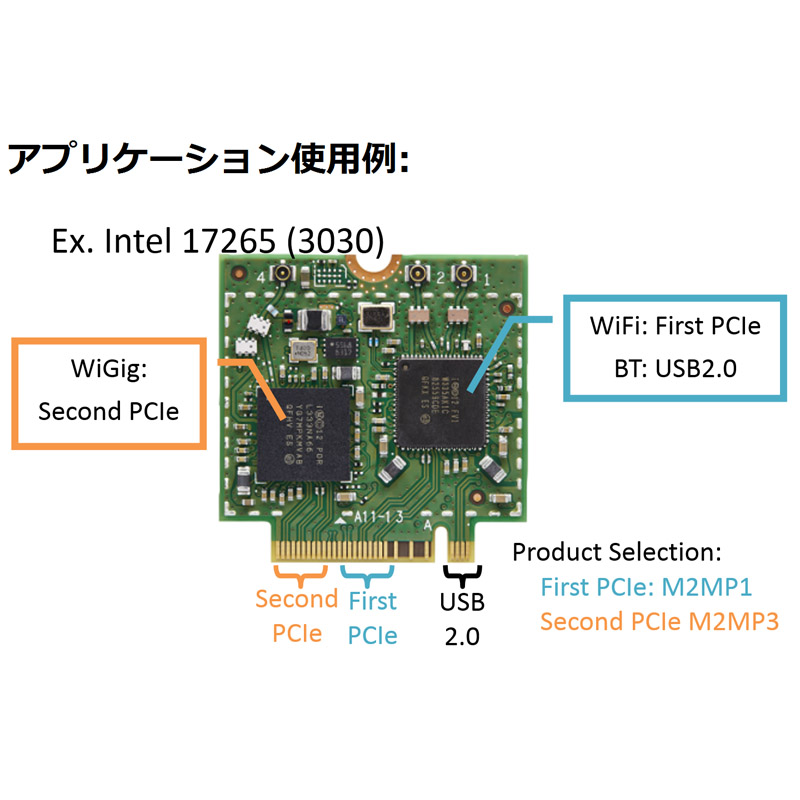

  • Support PCIe : 60 GHz WiGig (802.11ad) wireless application
    * Most of WiGig device supported by second PCIe lane.
  • No drivers needed for this M.2 to mini PCI-E Card Adapter

        Notice


  • For First PCIe Lane such as IEEE WLAN 802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac application, please choose our    another product: M2MP1 series.

        Specifications


  • M.2 Specification Revision 1.0
  • PCI Express base Specification 1.1 (Up to 2.5Gpbs)
  • USB Specification Revision2.0
  • Mainly Support 2230/3030 M.2 Card
    Ex. Intel 17265 , 18260 , Atheros W0096
  • Support M.2 Socket 1 with Second PCIe lane Module.
  • Support M.2 Key A/ E Card Type.
  • Support Full size and half size mPCIe slot

        System Requirement


  • Mini PCI-E slot
  • Windows 2000, XP, Vista 32/64, Windows 7, Windows 8, Windows 10 or Linux



M.2 (NGFF) to mini PCI-E Adapter comparison
Model Name UN32B M2BU3S-U3D M2BU3S-U2D M2BU3S-PU M2MU2
Function M.2 to mini card Rev 2.1 M.2 to mini card Rev 2.1 M.2 to mini card Rev 2.1 M.2 to mini card Rev 2.1 M.2 to mPCIe
Interface PCIe & USB 3.0 USB 3.0 USB 2.0 PCIe 2x or SATA USB 2.0
M.2 SPEC Socket 2 PCIe & USB3.0 dual bus WWAN Socket 2 SSIC-based WWAN Socket 2 SSIC-based WWAN Socket 2 Socket 2 SSIC-based WWAN
Application 5G / 4G / 3G / CDMA / LTE / GPS module 5G / 4G / CDMA / LTE / GPS module 5G / 4G / CDMA / LTE / GPS module PCIe 2x or SATA SSD module 5G / 4G / CDMA / LTE / GPS module
Module KEY B B B B B
Support Card Type 3030/3042/3050/3052 2242,50,52 / 3042,50,52 2242,50,52 / 3042,50,52 2242,50,52 / 3042,50,52 2230/2242/3030/3042

M.2 (NGFF) to mini PCI-E Adapter comparison
Model Name MN25A M2MP1-A M2MP1-E M2MP3-A M2MP3-E
Function M.2 to mPCIe M.2 to mPCIe M.2 to mPCIe M.2 to mPCIe M.2 to mPCIe
Interface PCIe & USB2.0 PCIe & USB2.0 PCIe & USB2.0 PCIe & USB2.0 PCIe & USB2.0
M.2 SPEC Socket 1
First PCIe Lane
Socket 1
First PCIe Lane
Socket 1
First PCIe Lane
Socket 1
Second PCIe Lane
Socket 1
Second PCIe Lane
Application WiFi+BT module WiFi+BT module WiFi+BT module WiFi+BT module WiFi+BT module
Module KEY E A E A E
Support Card Type 2230 2230/2242/3030/3042 2230/2242/3030/3042 2230/2242/3030/3042 2230/2242/3030/3042

mini PCI-E to M.2 (NGFF) Adapter comparison
Model Name NM51A NM61A-P01 NM61A-U3
Function mPCIe to M.2 mPCIe to M.2 mPCIe to M.2
Interface PCIe & USB2.0 PCIe USB3.0
M.2 SPEC Socket 1
First PCIe Lane
Socket 2
First PCIe Lane
Socket 2
USB3.0

Application WiFi+BT module PCIe Interface module USB Interface module
Module KEY A E B M B M
Support Card Type 3042/3050/3052/3060 3042、50、52、60、80 3042、50、52、60、80



        Web-shop


M2MP3-A
販売価格: USD 70.

M2MP3-A
M.2 Key A to mPCIe (PCIe+USB) アダプタ x1
Screw x2
Flat-Head Screw x1




M2MP3-E
販売価格: USD 70.

M2MP3-E
M.2 Key E to mPCIe (PCIe+USB) アダプタ x1
Screw x2
Flat-Head Screw x1
