	UH24A USB2.0 to 2 port USB2.0 Hub for 5G/4G wireless Adapter

UH24A Brief	Taiwan 1	Taiwan 2
PUN2A Brief	Taiwan 1	Taiwan 2
PUM3A Brief	Taiwan 1	Taiwan 2
UH24A Dimension	Taiwan 1	Taiwan 2
PUM3A Dimension	Taiwan 1	Taiwan 2
Web-shop

First Impression

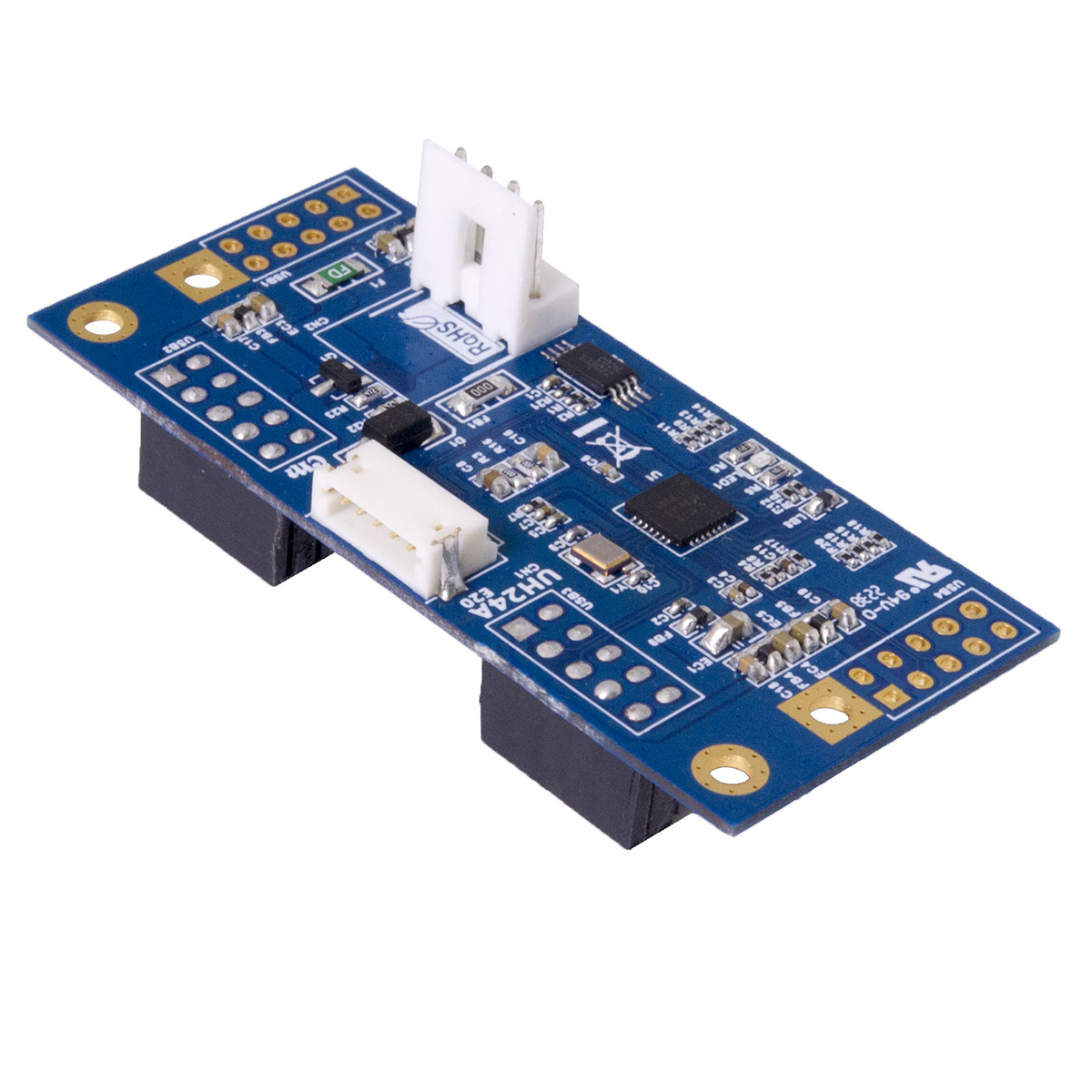

UH24A is designed for USB2.0 to 2 or 4 port USB2.0 Hub.
It’s design for embedded system to extend 4 port USB2.0 by using the GL852G MTT controller.

Function

Compliant to USB Specification Revison 2.0
On-chip 8-bit micro-processor
Multiple Transaction translator(MTT)
Each downstream port supports two-color status indicator, with automatic and manual modes compliant to USB specification Revision 2.0
Support both individual and gang modes of power management and over-current detection for downstream port
Conform to bus power requirements of USB 2.0 specification
Automatic switching between self-powered and bus-powered modes
Integrate USB 2.0 transceiver

Specification

Model Name: UH24A
Host: USB 2.0
Device: 2.54mm/2X5 Pos Female Header
Operation Temperature: (Commerce Grade) : 0~+70℃
Dimension (Maximum): L*W*D=65*29*15.6(mm)
Weight: ≒10g

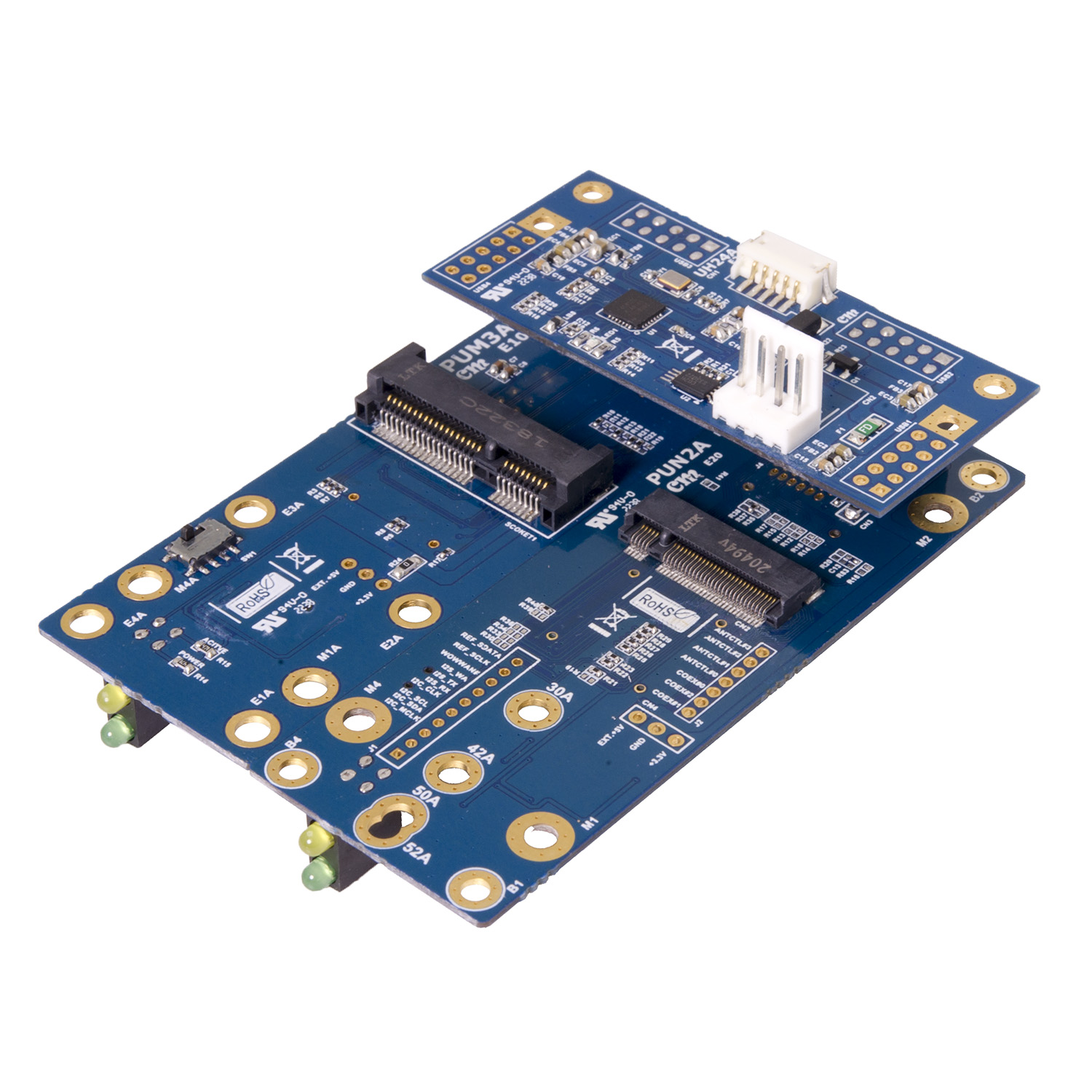

PUN2A (M.2 B Key USB Type 4G / 5G module to USB 3.2 Gen1)

PUN2A adapter is designed for Desktop/Laptop PCs that converts 4G/5G wireless M.2 Card to USB3.0 Insert your M.2 card with 5G/4G/LTE/HSPA(3G), global positioning system, and LTE functions to this adapter card, and then through the USB3.0 port. Dual Standard SIM card Push & Push connector is provided.
PUN2A supports maximum 6W power consumption.

Function

USB3.0：Pitch 2.54mm/2X5 Pos/Male Header
M.2 B Key Slot H=3.0mm or 4.0mm
Support 3030/3042/3050/3052 M.2 B Key
Support Dual SIM card M.2 LTE module
Clam shell Type SIM card socket
Wireless enable /disable SW
High quality connectors for long service life

Specification

Model Name: PUN2A
Host: USB3.0 /2.54mm/2X5 Pos Male Header
Device: M.2 B Key
Operation Temperature: (Commerce Grade) : 0~+85℃
Dimension (Maximum): L*W*D=91.7*32.1*19.2(mm)
Weight: ≒10g

PUM3A (mPCIe card USB Type 4G / 5G module to USB 3.1 Gen1)

PUM3A adapter is designed for desktop/Embedded system that converts 4G/5G wireless mPCIe Rev 2.1 (USB Type) to USB 3.0 port.
You can insert your USB type mPCIe such as GSM, HSPA (3.5G), GPS, LTE, 5G cards to this adapter then plug to USB port.
As standard SIM card is provided, you can connect to network carrier with SIM card.
PUM3A supports maximum 6W power consumption.
