MR11-EC2C-6250
PMMD V1.1 ( SATA to mini-SATA adapter with SATA Power )
Introduction:
The SATA to mSATA adapter is a converter tool for mini-SATA interface.
This module allows you connect any SATA device to the m-SATA slot through a standard SATA port and power cables.

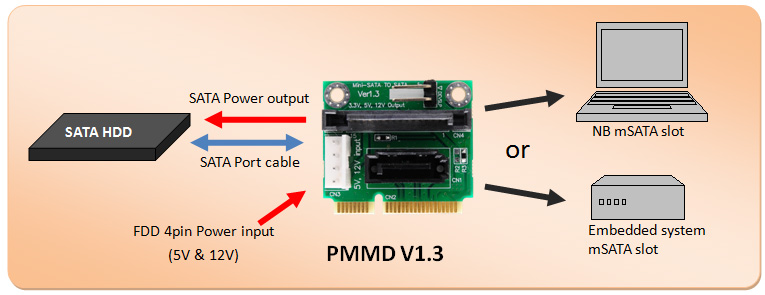

SATA power connector can supply 3.3V/5V/12 to SATA device, when 5V and 12V are input from 4pin FDD power connector
 |
 |
 |
|
- Allows user to use standard SATA hard device to SATA-IO mSATA slot in the Desktop or Laptop PC.
- Transparent to the operating system and does not require any software drivers.
Specification:
*This adapter is engineering test tools. NOT for home or office use.
*The Products just only support mSATA slot, Can’t support PCI express mini card, Can’t support Apple MacBook air SSD Card.
*SATA power and 4pin FDD connectors may be interfered each other.
System Requirements:
mSATA slot| PMMD V1.1 Package Contents | |
| Unit price: US$ 30 | |
PMMD V1.1 (SATA to mini-SATA adapter) x1 |
Metal Baffle (Half to Full miniCard Bracket) x1 |
SATA cable x1 |
SATAM-Y-SATAF x1 |
External 5V/12V power supply x1 |
Screw x4 |
| PMMD V1.0 Package Contents | |
| Unit price: US$ 20 | |
PMMD V1.0 (SATA to mini-SATA adapter) x1 |
Metal Baffle (Half to Full miniCard Bracket) x1 |
| Screw x4 |
Option |
|||||||||||||
|
|
||||||||||||
Documents Download |
|||
| Brief V1.1 |  Taiwan |
 Taiwan 2 |
 China Mirror |
| Brief V1.0 | Taiwan |
Taiwan 2 |
China Mirror |
| Dimension V1.0 | Taiwan |
Taiwan 2 |
China Mirror |
| Schematic V1.0 | Taiwan |
Taiwan 2 |
China Mirror |
